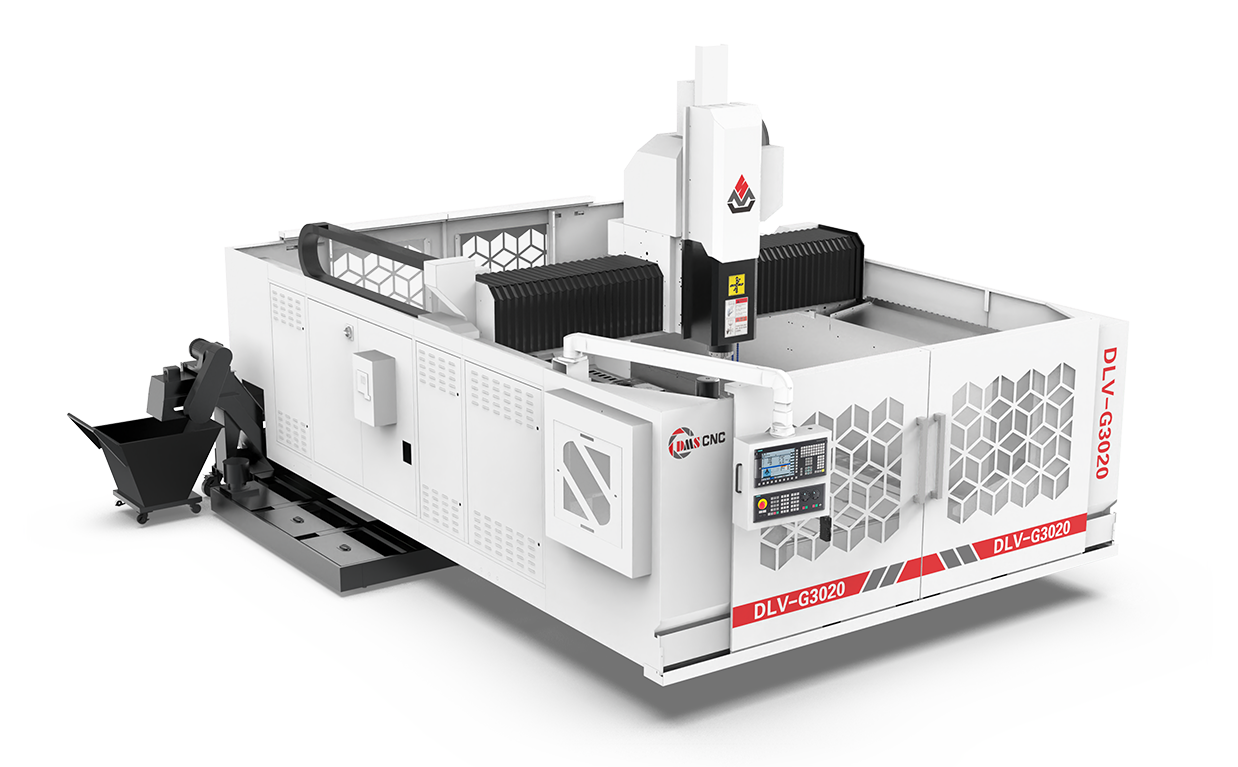

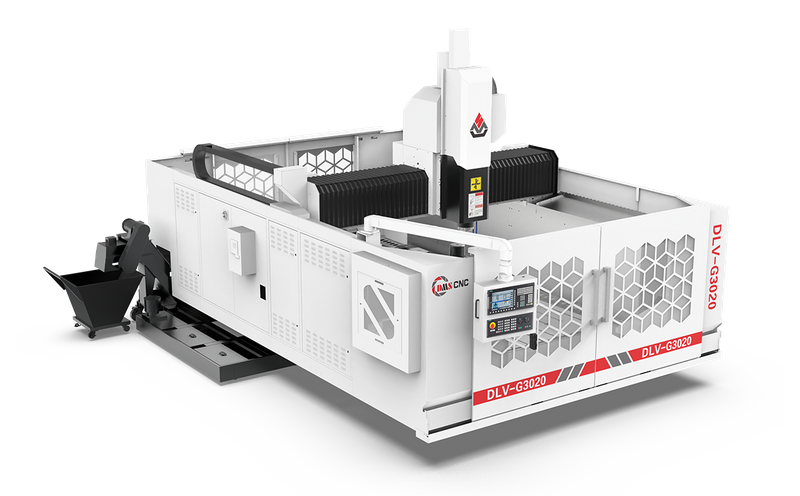

[DMS]DLV-G3020

This product is developed and manufactured according to market demand and is widely used in aerospace, new energy vehicles, mechanical equipment, rail transportation, industrial profile processing, and drilling, tapping, milling, boring and other materials for orderly precision processing of aluminum alloys, steel, iron, copper parts and PVC. The main control parts, power parts and drive parts of the machine are all selected from world-renowned brands. The whole machine bed, moving column structure and spindle head are made of high-quality mineral cast iron. The new reasonable structure has high strength and rigidity. The casting table can be equipped with professional pneumatic clamps and four-axis clamps, which ensures the stable operation, high processing accuracy, high efficiency and durability of the machine.
Availability:
Quantity:

X Axis                                                                          3000mm

Y Axis                                                                          2000mm

Z Axis                                                             800mm

System                                                                       Siemens/Fanuc/Mitsubishi

X/Y/Z Axes rapid traverse speed                55/55/40(m/min)

Working table                                               3000x2000mm

Spindle taper                                               BBT40

Spindle speed                                              20000rpm

Spindle motor power                                  20/25kw

Tool magazine capacity                               24T

Tool change time                                         2sec





The above parameters are for reference only and are subject to the technical agreement.
